1000kg Belt Type Sandbag Filling And Sealing Machine

Name: 1000kg Belt Type Sandbag Filling And Sealing Machine
Brand: BlueRay
Price: 8 USD

Place of Origin : Jiangxi, China

Brand Name : BlueRay

Certification : ISO

Supply Ability : 100 Set/Sets per Month semi auto sand packing/filling machine

Packaging Details : Metal framework with wooden case, keep the filling machine more safty

MOQ : 1 Unit/Units

Price : $8,000.00 - $10,000.00 / Unit

Type : Filling Machine

Application : Chemical, Commodity, Food, Machinery & Hardware, Feed, grease, grain, food, fertilizer, sugar, plastic, etc

Packaging Type : Bags

Packaging Material : Metal, Wood

Automatic Grade : Semi-automatic

Driven Type : Electric

Voltage : 220V/380V

Power : Approach 3KW

Dimension(L*W*H) : customized

Weight : 1000kg

Product name : semi auto sand packing/filling machine

Material : Carbon Steel, Stainless Steel

Weighing : 5-50kg

Suitable for material : granule,flake, lump,coarse powder and mixer

Advantage : Three-grade feeding speed, Three sensor, Full touch screen

Experience : 10 years in bagging machine

OEM, ODM : Yes

Service : reply within 24 hours

Contact Now

DCS-50D belt feeding semi auto automatic sandbag filling and sealing machine

why should choose us:
1. Experienced
over 15years experience on biomass pellet line and wood pellet making machine.
2. Professional
professoinal sales and engineers team design according to customers needs
3. Certification
high quality as all of our wood pellet making machine been approved CE certification.
4. Performance
already suplied over 100 turn-key projects with great satisfaction.
5. Manufacturer
We are manufacturer,customers can get better wood pellet making machine price and directly after-sales service.

1, Product Name: belt-type filling machine

2, Item: DCS-50D

Application materials	flake,lump,block,aggregation,mixture products of any industry
Display Resolution	5g, 10g
Weighing Range	5-50kg/bag or customized needs
Precisions	+/-(0.1-0.2)% FS
Packing Capacity	300-420 bags/hour
Dimention(LWHmm)	300015003500mm, the size can be customized according to your site
Power Supply	AC220V/380V, 50HZ, 1P/3P, customized available
Air Source	0.5-0.7 Mpa
Power	3KW
Working Temperature	-10~40 ℃
Relative Humidity	≤90% RH(Non-condesing)

Application

1000kg Belt Type Sandbag Filling And Sealing Machine

Application Materials(products)

Belt feeding type packing machine suit for pack flake,lump,block,aggregation,mixture products, such as gravel,pebble,stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/mixture),coal briquette, aluminum sulfate etc

Application Bags(open mouth bags)

This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc

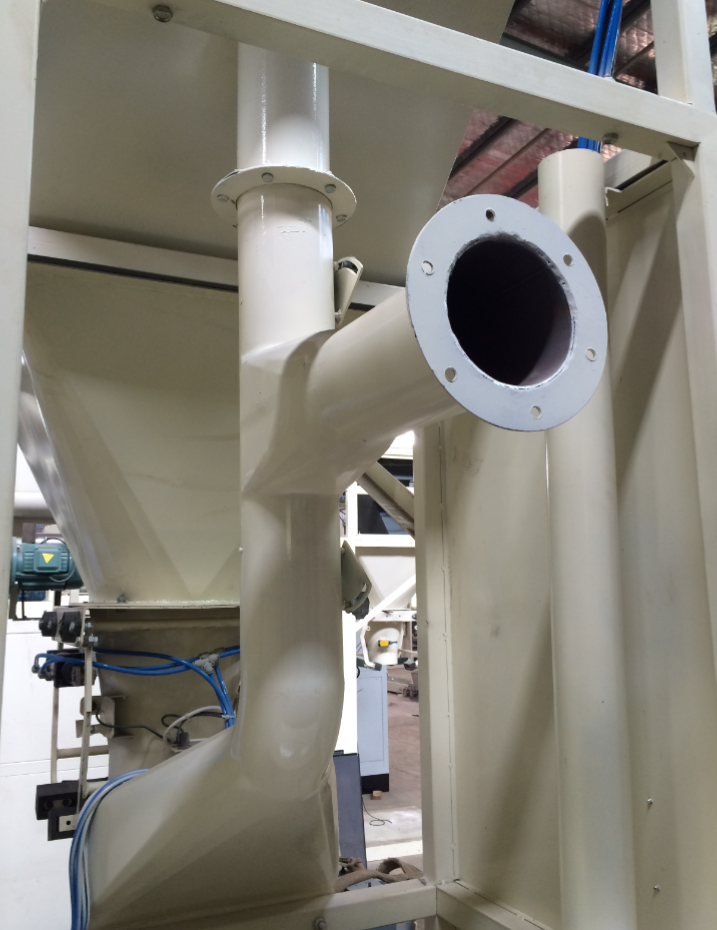

Detailed Images

Working Process

Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

Advantage

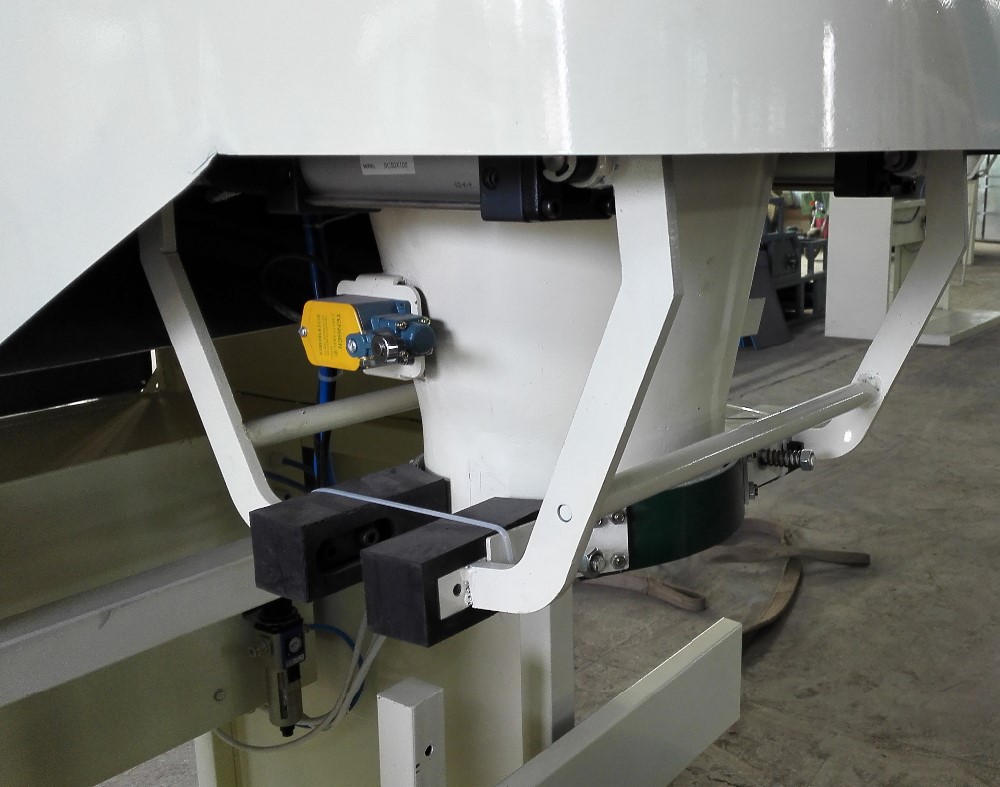

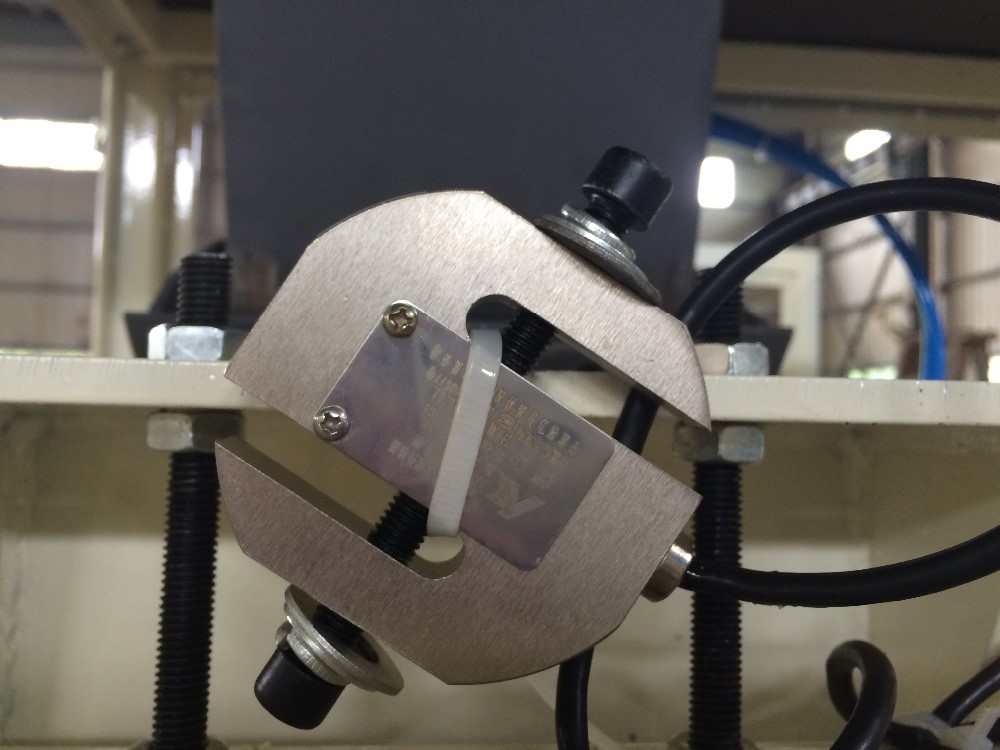

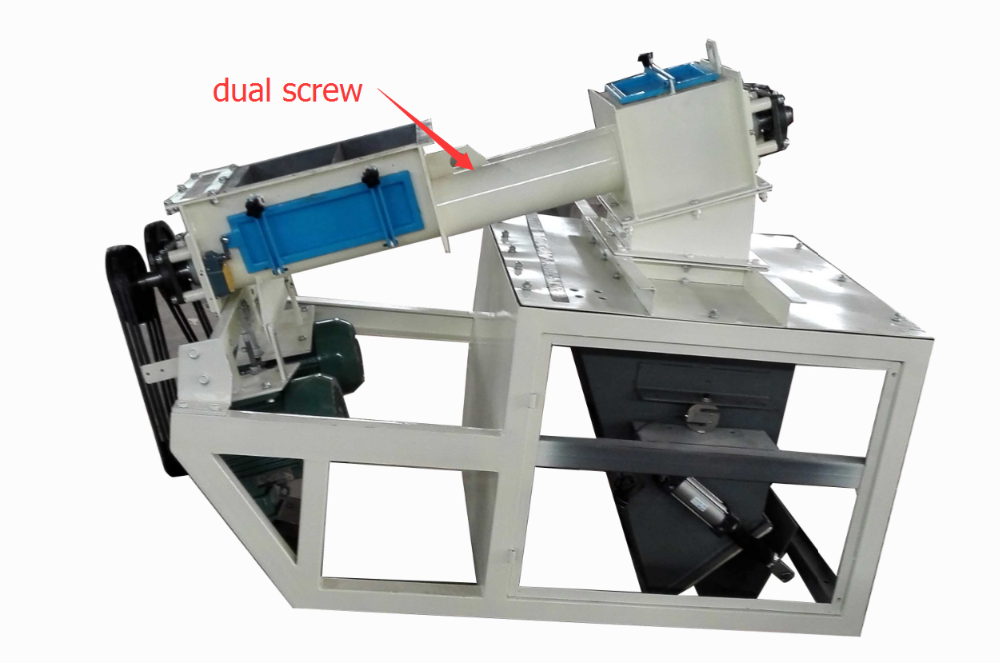

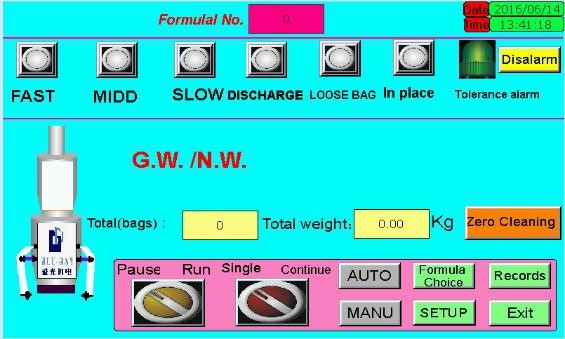

Control Box +Full touch screen panel +PLC system +Photoelectric sensor switch +English/Chinese view +Easy operation interface +Proction data record & print +Connect computer available	Three pieces of Load Cell (weighing sensor) +Famous brand load cell, more stable +Installed 3pieces load cell, high weighing accuracy	Dual Screw Feeding Mechanism +Dual screw design(coarse screw+fine screw) +Control by the PLC system and dual motor +Feeding speed with fast-midium-slow due to the motor frequency change	Automtic Bag Clamp/Loose Mechanism +Photoelectric sensor switch +Big force 2pcs air cylinder control +Automatic bag clamp and loose +Automatic materials dischage +Suit for different bag size	Dust Air Outlet +All of our packing machine will install air outlet +Connect your dust removal device, making the working environment more hygienic +Add our pulse dust collector, dust collection≥99.8%	Automatic Sewing Machine +Automatic bag top folding device(opitional) +Photoelectric sensor switch +Automatic knife thread cut +Single needle double thread chain +Production data record & print +Thread end length ajustable +Bag sewing heigth adjustable +With automatic bag conveyor

Packing & Delivery

Package in wooden case

All equipments will package in the
wooden case and fixed by the steel
then in the cantainer

Transport by truck

We will transport the machine to
Shanghai port(or any port of China you need)by the truck

Ship by the cargo vessel

All machines will in container then
ship to the sea port of your country by the boat

Our Company

Jiangxi Blue Ray M & E Co., Ltd

- 15 years professional manufacturer of packing machines,sewing/heat sealing machine,automatic palletizer
machine,elevator/conveyor etc
- More than 10 person engineers team,OEM service and customized design are available
- 3000㎡ working shop, high production capacity
- Sales and after sales team 24 hours online service

Flowing chart:

Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
